Cuadro comparativo
Scroll left/right
BioMini Series
Product Image
Product Name
BioMini Slim 3
BioMini Slim 2S
BioMini Slim 2
BioMini Combo 2
Sensor & Image
Capture
Flat(Single) fingers
Flat(Single) fingers
Flat(Single) fingers
Flat(Single) fingers
Sensor Type
Optical
Optical
Optical
Optical
Resolution
500 ppi
500 ppi
500 ppi
500 ppi
Grayscale
8-bit, 256 levels
8-bit, 256 levels
8-bit, 256 levels
8-bit, 256 levels
Image Size (WxL)
400 x 500 pixels
300 x 400 pixels
300 x 400 pixels
300 x 400 pixels
Template Format
Xperix, ISO19794-2, ANSI 378
Xperix, ISO19794-2, ANSI 378
Xperix, ISO19794-2, ANSI 378
Xperix, ISO19794-2, ANSI 378
Supported Image Formats
RAW, BMP, ISO 19794-4, WSQ(FBI certified)
RAW, BMP, ISO 19794-4, WSQ(FBI certified)
RAW, BMP, ISO 19794-4, WSQ(FBI certified)
RAW, BMP, ISO 19794-4, WSQ(FBI certified)
Encryption
Device: AES-256, RSA 1024bit, ECC 521bit
SDK: AES-256
Device: AES-256, RSA 1024bit, ECC 521bit
SDK: AES-256
SDK: AES-256
SDK: AES-256
FBI / Image Certifications
Mobile ID FAP 30 (PIV-071006), PIV Single Finger (PIV-071006), FIPS
Mobile ID FAP 20 (PIV-071006), PIV Single Finger (PIV-071006), FIPS
Mobile ID FAP 20 (PIV-071006), PIV Single Finger (PIV-071006)
Mobile ID FAP 20 (PIV-071006), PIV Single Finger (PIV-071006)
System
OS Support
Windows 7 or higher 32/64bit
Linux Ubuntu, Debian, Fedora, OpenSUSE, CentOS 32/64bit
Android 5.0 or higher (USB Host)OS/Platform Independent, Stand-alone Operation
Windows 7 or higher 32/64bit
Linux Ubuntu, Debian, Fedora, OpenSUSE, CentOS 32/64bit
Android 5.0 or higher (USB Host)OS/Platform Independent, Stand-alone Operation
Windows 7 or higher 32/64bit
Linux Ubuntu, Debian, Fedora, OpenSUSE, CentOS 32/64bit
Android 5.0 or higher (USB Host)
Windows 7 or higher 32/64bit
Linux Ubuntu, Debian, Fedora, OpenSUSE, CentOS 32/64bit
Weight & Dimensions
Weight
111 g
91 g
91 g
280 g
Platen Size (WxL)
21.5 mm x 26.5 mm
16.5 mm x 21 mm
16.5 mm x 21 mm
16.5 mm x 21 mm
Sensing Area (WxL)
20.32 mm x 25.4 mm
15.24 mm x 20.32 mm
15.24 mm x 20.32 mm
15.24 mm x 20.32 mm
Dimensions (WxLxH)
83 mm x 45.9 mm x 20 mm
72.8 mm x 40.7 mm x 18.5 mm
72.8 mm x 40.7 mm x 18.5 mm
95.7 mm x 114.8 mm x 52.6 mm
Durability
Suface Protection
Optic Glass (Scratch free)
Optic Glass (Scratch free)
Optic Glass (Scratch free)
Optic Glass (Scratch free)
Ingress Protection
IP65 (Sealed between bezel and sensor surface)
IP65 (Sealed between bezel and sensor surface)
IP65 (Sealed between bezel and sensor surface)
IP65 (Sealed between bezel and sensor surface)
Operating Temperature
-10 °C - 50 °C (14 ℉ - 122 ℉)
-10 °C - 55 °C (14 ℉ - 131 ℉)
-10 °C - 50 °C (14 ℉ - 122 ℉)
-10 °C - 50 °C (14 ℉ - 122 ℉)
Operating Humidity
0% - 90%, non-condensing
0% - 90%, non-condensing
0% - 90%, non-condensing
0% - 90%, non-condensing
Power & Connectors
Interface
USB 2.0 High Speed
USB 2.0 High Speed
USB 2.0 High Speed
USB 2.0 High Speed, CCID, PC/SC driver
Power Source
USB Host
USB Host
USB Host
USB Host
USB Voltage Level
5.0V ±10%
5.0V ±10%
5.0V ±10%
5.0V ±10%
General
Live Finger Detection(LFD)
Supported (by AI-based)
Supported (by AI-based, ISO/IEC 30107-3 PAD Level 1 & 2 Compliant)
Supported (by AI-based, ISO/IEC 30107-3 PAD Level 1 & 2 Compliant)
Supported (by AI-based)
Plug & Play
Supported (by HID Protocol)
Supported (by HID Protocol)
Not Supported
Not Supported
Stand-alone Mode
Supported
Supported
Not Supported
Not Supported
Multi Dynamic Range(MDR)
Supported
Supported
Supported
Supported
Certification
Certification
FBI, CE, FCC, KC, RoHS, USB-IF, CB, IEC 62471, WEEE, REACH, BIS, WHQL
FBI, CE, FCC, KC, RoHS, CB, IEC 62471, WEEE, REACH, WHQL, PAD Level 1 & 2 by BixeLab
FBI, CE, FCC, KC, RoHS, CB, IEC 62471, WEEE, REACH, BIS, USB-IF, WHQL, PAD Level 1 & 2 by BixeLab
FBI, CE, FCC, KC, RoHS, USB-IF, UL, WHQL
Card
Contact Smart Card
Not Supported
Not Supported
Not Supported
ISO 7816 Class A/B/C (5V, 3.0V, 1.8V) T=0 and T=1, EMV2000 contact smart card with SAM Slot(optional, max 1x SAM)
Contactless Smart Card
Not Supported
Not Supported
Not Supported
Not Supported
SAM slot
Not Supported
Not Supported
Not Supported
Supported (Optional, Max. 1 slots)
BioMini Slim 3
BioMini Slim 2S
BioMini Slim 2S
BioMini Combo 2
Sensor & Image
Capture
Flat(Single) fingers
Capture
Flat(Single) fingers
Capture
Flat(Single) fingers
Capture
Flat(Single) fingers
Sensor Type
Optical
Sensor Type
Optical
Sensor Type
Optical
Sensor Type
Optical
Resolution
500 ppi
Resolution
500 ppi
Resolution
500 ppi
Resolution
500 ppi
Grayscale
8-bit, 256 levels
Grayscale
8-bit, 256 levels
Grayscale
8-bit, 256 levels
Grayscale
8-bit, 256 levels
Image Size (WxL)
400 x 500 pixels
Image Size (WxL)
300 x 400 pixels
Image Size (WxL)
300 x 400 pixels
Image Size (WxL)
300 x 400 pixels
Template Format
Xperix, ISO19794-2, ANSI 378
Template Format
Xperix, ISO19794-2, ANSI 378
Template Format
Xperix, ISO19794-2, ANSI 378
Template Format
Xperix, ISO19794-2, ANSI 378
Supported Image Formats
RAW, BMP, ISO 19794-4, WSQ(FBI certified)
Supported Image Formats
RAW, BMP, ISO 19794-4, WSQ(FBI certified)
Supported Image Formats
RAW, BMP, ISO 19794-4, WSQ(FBI certified)
Supported Image Formats
RAW, BMP, ISO 19794-4, WSQ(FBI certified)
Encryption
Device: AES-256, RSA 1024bit, ECC 521bit
SDK: AES-256
Encryption
Device: AES-256, RSA 1024bit, ECC 521bit
SDK: AES-256
Encryption
SDK: AES-256
Encryption
SDK: AES-256
FBI / Image Certifications
Mobile ID FAP 30 (PIV-071006), PIV Single Finger (PIV-071006), FIPS
FBI / Image Certifications
Mobile ID FAP 20 (PIV-071006), PIV Single Finger (PIV-071006), FIPS
FBI / Image Certifications
Mobile ID FAP 20 (PIV-071006), PIV Single Finger (PIV-071006)
FBI / Image Certifications
Mobile ID FAP 20 (PIV-071006), PIV Single Finger (PIV-071006)
System
OS Support
Windows 7 or higher 32/64bit
Linux Ubuntu, Debian, Fedora, OpenSUSE, CentOS 32/64bit
Android 5.0 or higher (USB Host)OS/Platform Independent, Stand-alone Operation
OS Support
Windows 7 or higher 32/64bit
Linux Ubuntu, Debian, Fedora, OpenSUSE, CentOS 32/64bit
Android 5.0 or higher (USB Host)OS/Platform Independent, Stand-alone Operation
OS Support
Windows 7 or higher 32/64bit
Linux Ubuntu, Debian, Fedora, OpenSUSE, CentOS 32/64bit
Android 5.0 or higher (USB Host)
OS Support
Windows 7 or higher 32/64bit
Linux Ubuntu, Debian, Fedora, OpenSUSE, CentOS 32/64bit
Weight & Dimensions
Weight
111 g
Weight
91 g
Weight
91 g
Weight
280 g
Platen Size (WxL)
21.5 mm x 26.5 mm
Platen Size (WxL)
16.5 mm x 21 mm
Platen Size (WxL)
16.5 mm x 21 mm
Platen Size (WxL)
16.5 mm x 21 mm
Sensing Area (WxL)
20.32 mm x 25.4 mm
Sensing Area (WxL)
15.24 mm x 20.32 mm
Sensing Area (WxL)
15.24 mm x 20.32 mm
Sensing Area (WxL)
15.24 mm x 20.32 mm
Dimensions (WxLxH)
83 mm x 45.9 mm x 20 mm
Dimensions (WxLxH)
72.8 mm x 40.7 mm x 18.5 mm
Dimensions (WxLxH)
72.8 mm x 40.7 mm x 18.5 mm
Dimensions (WxLxH)
95.7 mm x 114.8 mm x 52.6 mm
Durability
Suface Protection
Optic Glass (Scratch free)
Suface Protection
Optic Glass (Scratch free)
Suface Protection
Optic Glass (Scratch free)
Suface Protection
Optic Glass (Scratch free)
Ingress Protection
IP65 (Sealed between bezel and sensor surface)
Ingress Protection
IP65 (Sealed between bezel and sensor surface)
Ingress Protection
IP65 (Sealed between bezel and sensor surface)
Ingress Protection
IP65 (Sealed between bezel and sensor surface)
Operating Temperature
-10 °C - 50 °C (14 ℉ - 122 ℉)
Operating Temperature
-10 °C - 55 °C (14 ℉ - 131 ℉)
Operating Temperature
-10 °C - 50 °C (14 ℉ - 122 ℉)
Operating Temperature
-10 °C - 50 °C (14 ℉ - 122 ℉)
Operating Humidity
0% - 90%, non-condensing
Operating Humidity
0% - 90%, non-condensing
Operating Humidity
0% - 90%, non-condensing
Operating Humidity
0% - 90%, non-condensing
Power & Connectors
Interface
USB 2.0 High Speed
Interface
USB 2.0 High Speed
Interface
USB 2.0 High Speed
Interface
USB 2.0 High Speed, CCID, PC/SC driver
Power Source
USB Host
Power Source
USB Host
Power Source
USB Host
Power Source
USB Host
USB Voltage Level
5.0V ±10%
USB Voltage Level
5.0V ±10%
USB Voltage Level
5.0V ±10%
USB Voltage Level
5.0V ±10%
General
Live Finger Detection(LFD)
Supported (by AI-based)
Live Finger Detection(LFD)
Supported (by AI-based, ISO/IEC 30107-3 PAD Level 1 & 2 Compliant)
Live Finger Detection(LFD)
Supported (by AI-based, ISO/IEC 30107-3 PAD Level 1 & 2 Compliant)
Live Finger Detection(LFD)
Supported (by AI-based)
Plug & Play
Supported (by HID Protocol)
Plug & Play
Supported (by HID Protocol)
Plug & Play
Not Supported
Plug & Play
Not Supported
Stand-alone Mode
Supported
Stand-alone Mode
Supported
Stand-alone Mode
Not Supported
Stand-alone Mode
Not Supported
Multi Dynamic Range(MDR)
Supported
Multi Dynamic Range(MDR)
Supported
Multi Dynamic Range(MDR)
Supported
Multi Dynamic Range(MDR)
Supported
Certification
Certification
FBI, CE, FCC, KC, RoHS, USB-IF, CB, IEC 62471, WEEE, REACH, BIS, WHQL
Certification
FBI, CE, FCC, KC, RoHS, CB, IEC 62471, WEEE, REACH, WHQL, PAD Level 1 & 2 by BixeLab
Certification
FBI, CE, FCC, KC, RoHS, CB, IEC 62471, WEEE, REACH, BIS, USB-IF, WHQL, PAD Level 1 & 2 by BixeLab
Certification
FBI, CE, FCC, KC, RoHS, USB-IF, UL, WHQL
Card
Contact Smart Card
Not Supported
Contact Smart Card
Not Supported
Contact Smart Card
Not Supported
Contact Smart Card
ISO 7816 Class A/B/C (5V, 3.0V, 1.8V) T=0 and T=1, EMV2000 contact smart card with SAM Slot(optional, max 1x SAM)
Contactless Smart Card
Not Supported
Contactless Smart Card
Not Supported
Contactless Smart Card
Not Supported
Contactless Smart Card
Not Supported
SAM slot
Not Supported
SAM slot
Not Supported
SAM slot
Not Supported
SAM slot
Supported (Optional, Max. 1 slots)
RealScan Series
Product Image
Product Name
RealScan S60

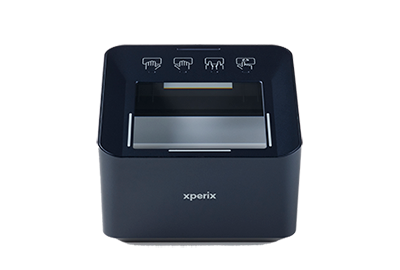

RealScan-G10
RealScan-D
RealScan-FC
Sensor & Image
Capture
Flat(Four/Two/Single) and Rolled(Single) fingers
Flat(Four/Two/Single) and Rolled(Single) fingers
Flat(Two/Single) and Rolled(Single) fingers
Flat(Four/Two/Single) and Rolled(Single) fingers, Upper and Lower palms, Writer's palms
Sensor Type
Optical TFT
Optical
Optical
Optical
Resolution
500 ppi
500 ppi
500 ppi
500 ppi
Grayscale
8-bit, 256 levels
8-bit, 256 levels
8-bit, 256 levels
8-bit, 256 levels
Image Size (WxL)
Four finger slap: 1600 x 1500 pixels
Two finger flat: 900 x 900 pixels
Single flat / Roll: 800 x 750 pixels
Four finger slap: 1600 x 1500 pixels
Single flat / Roll: 800 x 750 pixels
Two finger flat: 900 x 900 pixels
Single flat / Roll: 900 x 900 pixels
Palm print: 2500 x 2500 pixels
Four finger Slap: 1600 x 1500 pixels
Single flat / Roll: 800 x 750 pixels
Template Format
Xperix, ISO 19794-2, ANSI 378 by Image SDK
Xperix, ISO 19794-2, ANSI 378 by Image SDK
Xperix, ISO 19794-2, ANSI 378 by Image SDK
Xperix, ISO 19794-2, ANSI 378 by Image SDK
Supported Image Formats
RAW, BMP, WSQ, JPEG2000, ISO19794-4
RAW, BMP, WSQ, JPEG2000, ISO19794-4
RAW, BMP, WSQ, JPEG2000, ISO19794-4
RAW, BMP, WSQ, JPEG2000, ISO19794-4
Encryption
AES-256 by Image SDK
AES-256 by Image SDK
AES-256 by Image SDK
AES-256 by Image SDK
FBI / Image Certifications
Identification Flats (Appendix F), Live-Scan(Tenprint) System (Appendix F),Mobile ID FAP 60 (Appendix F)
Identification Flats (Appendix F), Live-Scan(Tenprint) System (Appendix F),Mobile ID FAP 60 (Appendix F)
Mobile ID FAP 45 (Appendix F), PIV Single Finger (PIV-071006)
Identification Flats (Appendix F & Appendix P), Live-Scan(Tenprint) System (Appendix F),Live-Scan(Palm) System (Appendix P)
System
OS Support
Windows 7 or higher 32/64bit
Linux Ubuntu, Debian, Fedora, OpenSUSE, CentOS 32/64bit
Android 5.0 or higher
Windows 7 or higher 32/64bit
Linux Ubuntu, Debian, Fedora, OpenSUSE, CentOS 32/64bit
Android 5.0 or higher
Windows 7 or higher 32/64bit
Linux Ubuntu, Debian, Fedora, OpenSUSE, CentOS 32/64bit
Android 5.0 or higher
Windows 7 or higher 32/64bit
Linux Ubuntu, Debian, Fedora, OpenSUSE, CentOS 32/64bit
Android 5.0 or higher
Weight & Dimensions
Weight
220 g
1.8 kg
540 g
5.26 kg
Platen Size (WxL)
83.3 mm x 78.2 mm
89 mm x 80 mm
48 mm x 48 mm
131.2 mm x 130.2 mm
Sensing Area (WxL)
81.28 mm x 76.2 mm
81.28 mm x 76.2 mm
46 mm x 46 mm
127 mm x 127 mm
Dimensions (WxLxH)
118 mm x 120 mm x 19.3 mm
152 mm x 152 mm x 127 mm
84 mm x 171 mm x 63 mm
193 mm x 315 mm x 150 mm
Durability
Suface Protection
Optic Glass + AR coating (Pencil 6H)
Optic Glass (Scratch free)
Optic Glass (Scratch free)
Optic Glass (Scratch free)
Ingress Protection
IP65 (Sealed between bezel and sensor surface)
IP54 (Sealed between bezel and sensor surface)
IP53 (Sealed between bezel and sensor surface)
IP64
Operating Temperature
-10 °C - 55 °C (-50 ℉ - 131 ℉)
-10 °C - 50 °C (-50 ℉ - 122 ℉)
-10 °C - 50 °C (-50 ℉ - 122 ℉)
0 °C - 55 °C (32 ℉ - 131 ℉)
Operating Humidity
10% - 90%, non-condensing
10% - 90%, non-condensing
10% - 90%, non-condensing
10% - 90%, non-condensing
Power & Connectors
Interface
USB 2.0 High Speed, USB-C
USB 2.0 High Speed
USB 2.0 High Speed
USB 2.0 High Speed
Power Source
USB Host
USB Host
USB Host
USB Host / Adapter
USB Voltage Level
5.0V ±10%
5.0V ±10%
5.0V ±10%
5.0V ±10% / 12 VDC ±10%
General
Live Finger Detection(LFD)
Supported (by AI-based, ISO/IEC 30107-3 PAD Level 1 & 2 Compliant)
Supported (by AI-based, ISO/IEC 30107-3 PAD Level 1 & 2 Compliant)
Supported (by AI-based)
Not Supported
Sound
Buzzer
Speaker
Buzzer
Speaker
LED Indicator
Supported
Supported
Supported
Not Supported
Kensinton lock
Not Supported
Supported
Not Supported
Not Supported
Certification
Certification
FBI, CE, FCC, KC, RoHS, USB-IF, IEC 62471, WEEE, REACH, WHQL, UL, PAD Level 1 & 2 by BixeLab
FBI, CE, FCC, KC, RoHS, USB-IF, UL, WHQL, BIS, IEC62471, STQC, WEEE, REACH, PAD Level 1 & 2 by BixeLab
FBI, WHQL, CE, FCC, UL, KC
FBI, CE, FCC, KC, RoHS, WEEE, REACH, WHQL, BIS, UL
RealScan S60
RealScan-G10
RealScan-D
RealScan-FC
Sensor & Image
Capture
Flat(Four/Two/Single) and Rolled(Single) fingers
Capture
Flat(Four/Two/Single) and Rolled(Single) fingers
Capture
Flat(Two/Single) and Rolled(Single) fingers
Capture
Flat(Four/Two/Single) and Rolled(Single) fingers, Upper and Lower palms, Writer's palms
Sensor Type
Optical TFT
Sensor Type
Optical
Sensor Type
Optical
Sensor Type
Optical
Resolution
500 ppi
Resolution
500 ppi
Resolution
500 ppi
Resolution
500 ppi
Grayscale
8-bit, 256 levels
Grayscale
8-bit, 256 levels
Grayscale
8-bit, 256 levels
Grayscale
8-bit, 256 levels
Image Size (WxL)
Four finger slap: 1600 x 1500 pixels
Two finger flat: 900 x 900 pixels
Single flat / Roll: 800 x 750 pixels
Image Size (WxL)
Four finger slap: 1600 x 1500 pixels
Single flat / Roll: 800 x 750 pixels
Image Size (WxL)
Two finger flat: 900 x 900 pixels
Single flat / Roll: 900 x 900 pixels
Image Size (WxL)
Palm print: 2500 x 2500 pixels
Four finger Slap: 1600 x 1500 pixels
Single flat / Roll: 800 x 750 pixels
Template Format
Xperix, ISO 19794-2, ANSI 378 by Image SDK
Template Format
Xperix, ISO 19794-2, ANSI 378 by Image SDK
Template Format
Xperix, ISO 19794-2, ANSI 378 by Image SDK
Template Format
Xperix, ISO 19794-2, ANSI 378 by Image SDK
Supported Image Formats
RAW, BMP, WSQ, JPEG2000, ISO19794-4
Supported Image Formats
RAW, BMP, WSQ, JPEG2000, ISO19794-4
Supported Image Formats
RAW, BMP, WSQ, JPEG2000, ISO19794-4
Supported Image Formats
RAW, BMP, WSQ, JPEG2000, ISO19794-4
Encryption
AES-256 by Image SDK
Encryption
AES-256 by Image SDK
Encryption
AES-256 by Image SDK
Encryption
AES-256 by Image SDK
FBI / Image Certifications
Identification Flats (Appendix F), Live-Scan(Tenprint) System (Appendix F),Mobile ID FAP 60 (Appendix F)
FBI / Image Certifications
Identification Flats (Appendix F), Live-Scan(Tenprint) System (Appendix F),Mobile ID FAP 60 (Appendix F)
FBI / Image Certifications
Mobile ID FAP 45 (Appendix F), PIV Single Finger (PIV-071006)
FBI / Image Certifications
Identification Flats (Appendix F & Appendix P), Live-Scan(Tenprint) System (Appendix F),Live-Scan(Palm) System (Appendix P)
System
OS Support
Windows 7 or higher 32/64bit
Linux Ubuntu, Debian, Fedora, OpenSUSE, CentOS 32/64bit
Android 5.0 or higher
OS Support
Windows 7 or higher 32/64bit
Linux Ubuntu, Debian, Fedora, OpenSUSE, CentOS 32/64bit
Android 5.0 or higher
OS Support
Windows 7 or higher 32/64bit
Linux Ubuntu, Debian, Fedora, OpenSUSE, CentOS 32/64bit
Android 5.0 or higher
OS Support
Windows 7 or higher 32/64bit
Linux Ubuntu, Debian, Fedora, OpenSUSE, CentOS 32/64bit
Android 5.0 or higher
Weight & Dimensions
Weight
220 g
Weight
1.8 kg
Weight
540 g
Weight
5.26 kg
Platen Size (WxL)
83.3 mm x 78.2 mm
Platen Size (WxL)
89 mm x 80 mm
Platen Size (WxL)
48 mm x 48 mm
Platen Size (WxL)
131.2 mm x 130.2 mm
Sensing Area (WxL)
81.28 mm x 76.2 mm
Sensing Area (WxL)
81.28 mm x 76.2 mm
Sensing Area (WxL)
46 mm x 46 mm
Sensing Area (WxL)
127 mm x 127 mm
Dimensions (WxLxH)
118 mm x 120 mm x 19.3 mm
Dimensions (WxLxH)
152 mm x 152 mm x 127 mm
Dimensions (WxLxH)
84 mm x 171 mm x 63 mm
Dimensions (WxLxH)
193 mm x 315 mm x 150 mm
Durability
Suface Protection
Optic Glass + AR coating (Pencil 6H)
Suface Protection
Optic Glass (Scratch free)
Suface Protection
Optic Glass (Scratch free)
Suface Protection
Optic Glass (Scratch free)
Ingress Protection
IP65 (Sealed between bezel and sensor surface)
Ingress Protection
IP54 (Sealed between bezel and sensor surface)
Ingress Protection
IP53 (Sealed between bezel and sensor surface)
Ingress Protection
IP64
Operating Temperature
-10 °C - 55 °C (-50 ℉ - 131 ℉)
Operating Temperature
-10 °C - 50 °C (-50 ℉ - 122 ℉)
Operating Temperature
-10 °C - 50 °C (-50 ℉ - 122 ℉)
Operating Temperature
0 °C - 55 °C (32 ℉ - 131 ℉)
Operating Humidity
10% - 90%, non-condensing
Operating Humidity
10% - 90%, non-condensing
Operating Humidity
10% - 90%, non-condensing
Operating Humidity
10% - 90%, non-condensing
Power & Connectors
Interface
USB 2.0 High Speed, USB-C
Interface
USB 2.0 High Speed
Interface
USB 2.0 High Speed
Interface
USB 2.0 High Speed
Power Source
USB Host
Power Source
USB Host
Power Source
USB Host
Power Source
USB Host / Adapter
USB Voltage Level
5.0V ±10%
USB Voltage Level
5.0V ±10%
USB Voltage Level
5.0V ±10%
USB Voltage Level
5.0V ±10% / 12 VDC ±10%
General
Live Finger Detection(LFD)
Supported (by AI-based, ISO/IEC 30107-3 PAD Level 1 & 2 Compliant)
Live Finger Detection(LFD)
Supported (by AI-based, ISO/IEC 30107-3 PAD Level 1 & 2 Compliant)
Live Finger Detection(LFD)
Supported (by AI-based)
Live Finger Detection(LFD)
Not Supported
Sound
Buzzer
Sound
Speaker
Sound
Buzzer
Sound
Speaker
LED Indicator
Supported
LED Indicator
Supported
LED Indicator
Supported
LED Indicator
Not Supported
Kensinton lock
Not Supported
Kensinton lock
Supported
Kensinton lock
Not Supported
Kensinton lock
Not Supported
Certification
Certification
FBI, CE, FCC, KC, RoHS, USB-IF, IEC 62471, WEEE, REACH, WHQL, UL, PAD Level 1 & 2 by BixeLab
Certification
FBI, CE, FCC, KC, RoHS, USB-IF, UL, WHQL, BIS, IEC62471, STQC, WEEE, REACH, PAD Level 1 & 2 by BixeLab
Certification
FBI, WHQL, CE, FCC, UL, KC
Certification
FBI, CE, FCC, KC, RoHS, WEEE, REACH, WHQL, BIS, UL
RealScan Series (Type2)
Product Image
Product Name
RealScan S60
RealScan-G10
RealScan-D
RealScan-FC
Product Name
Sensor & Image
Capture
Flat(Four/Two/Single) and Rolled(Single) fingers
Flat(Four/Two/Single) and Rolled(Single) fingers
Flat(Two/Single) and Rolled(Single) fingers
Flat(Four/Two/Single) and Rolled(Single) fingers, Upper and Lower palms, Writer's palms
spec
Sensor Type
Optical TFT
Optical
Optical
Optical
spec
Resolution
500 ppi
500 ppi
500 ppi
500 ppi
spec
Grayscale
8-bit, 256 levels
8-bit, 256 levels
8-bit, 256 levels
8-bit, 256 levels
spec
Image Size (WxL)
Four finger slap: 1600 x 1500 pixels
Two finger flat: 900 x 900 pixels
Single flat / Roll: 800 x 750 pixels
Four finger slap: 1600 x 1500 pixels
Single flat / Roll: 800 x 750 pixels
Two finger flat: 900 x 900 pixels
Single flat / Roll: 900 x 900 pixels
Palm print: 2500 x 2500 pixels
Four finger Slap: 1600 x 1500 pixels
Single flat / Roll: 800 x 750 pixels
spec
Template Format
Xperix, ISO 19794-2, ANSI 378 by Image SDK
Xperix, ISO 19794-2, ANSI 378 by Image SDK
Xperix, ISO 19794-2, ANSI 378 by Image SDK
Xperix, ISO 19794-2, ANSI 378 by Image SDK
spec
Supported Image Formats
RAW, BMP, WSQ, JPEG2000, ISO19794-4
RAW, BMP, WSQ, JPEG2000, ISO19794-4
RAW, BMP, WSQ, JPEG2000, ISO19794-4
RAW, BMP, WSQ, JPEG2000, ISO19794-4
spec
Encryption
AES-256 by Image SDK
AES-256 by Image SDK
AES-256 by Image SDK
AES-256 by Image SDK
spec
FBI / Image Certifications
Identification Flats (Appendix F), Live-Scan(Tenprint) System (Appendix F),Mobile ID FAP 60 (Appendix F)
Identification Flats (Appendix F), Live-Scan(Tenprint) System (Appendix F),Mobile ID FAP 60 (Appendix F)
Mobile ID FAP 45 (Appendix F), PIV Single Finger (PIV-071006)
Identification Flats (Appendix F & Appendix P), Live-Scan(Tenprint) System (Appendix F),Live-Scan(Palm) System (Appendix P)
spec
System
OS Support
Windows 7 or higher 32/64bit
Linux Ubuntu, Debian, Fedora, OpenSUSE, CentOS 32/64bit
Android 5.0 or higher
Windows 7 or higher 32/64bit
Linux Ubuntu, Debian, Fedora, OpenSUSE, CentOS 32/64bit
Android 5.0 or higher
Windows 7 or higher 32/64bit
Linux Ubuntu, Debian, Fedora, OpenSUSE, CentOS 32/64bit
Android 5.0 or higher
Windows 7 or higher 32/64bit
Linux Ubuntu, Debian, Fedora, OpenSUSE, CentOS 32/64bit
Android 5.0 or higher
spec
Weight & Dimensions
Weight
220 g
1.8 kg
540 g
5.26 kg
spec
Platen Size (WxL)
83.3 mm x 78.2 mm
89 mm x 80 mm
48 mm x 48 mm
131.2 mm x 130.2 mm
spec
Sensing Area (WxL)
81.28 mm x 76.2 mm
81.28 mm x 76.2 mm
46 mm x 46 mm
127 mm x 127 mm
spec
Dimensions (WxLxH)
118 mm x 120 mm x 19.3 mm
152 mm x 152 mm x 127 mm
84 mm x 171 mm x 63 mm
193 mm x 315 mm x 150 mm
spec
Durability
Suface Protection
Optic Glass + AR coating (Pencil 6H)
Optic Glass (Scratch free)
Optic Glass (Scratch free)
Optic Glass (Scratch free)
spec
Ingress Protection
IP65 (Sensor Surface)
IP54 (Sealed between bezel and sensor surface)
IP53 (Sealed between bezel and sensor surface)
IP64
spec
Operating Temperature
-10 °C - 55 °C (-50 ℉ - 131 ℉)
-10 °C - 50 °C (-50 ℉ - 122 ℉)
-10 °C - 50 °C (-50 ℉ - 122 ℉)
0 °C - 55 °C (32 ℉ - 131 ℉)
spec
Operating Humidity
10% - 90%, non-condensing
10% - 90%, non-condensing
10% - 90%, non-condensing
10% - 90%, non-condensing
spec
Power & Connectors
Interface
USB 2.0 High Speed, USB-C
USB 2.0 High Speed
USB 2.0 High Speed
USB 2.0 High Speed
spec
Power Source
USB Host
USB Host
USB Host
USB Host / Adapter
spec
USB Voltage Level
5.0V ±10%
5.0V ±10%
5.0V ±10%
5.0V ±10% / 12 VDC ±10%
spec
General
Live Finger Detection(LFD)
Supported (by AI-based, ISO/IEC 30107-3 PAD Level 1 & 2 Compliant)
Supported (by AI-based, ISO/IEC 30107-3 PAD Level 1 & 2 Compliant)
Supported (by AI-based)
Not Supported
spec
Sound
Buzzer
Speaker
Buzzer
Speaker
spec
LED Indicator
Supported
Supported
Supported
Not Supported
spec
Kensinton lock
Not Supported
Supported
Not Supported
Not Supported
spec
Certification
Certification
FBI, CE, FCC, KC, RoHS, USB-IF, IEC 62471, WEEE, REACH, WHQL, UL, PAD Level 1 & 2 by BixeLab
FBI, CE, FCC, KC, RoHS, USB-IF, UL, WHQL, BIS, IEC62471, STQC, WEEE, REACH, PAD Level 1 & 2 by BixeLab
FBI, WHQL, CE, FCC, UL, KC
FBI, CE, FCC, KC, RoHS, WEEE, REACH, WHQL, BIS, UL
spec
RealScan S60
RealScan-G10
RealScan-D
RealScan-FC
Product Name
Sensor & Image
Capture
Flat(Four/Two/Single) and Rolled(Single) fingers
Capture
Flat(Four/Two/Single) and Rolled(Single) fingers
Capture
Flat(Two/Single) and Rolled(Single) fingers
Capture
Flat(Four/Two/Single) and Rolled(Single) fingers, Upper and Lower palms, Writer's palms
Capture
Spec
Sensor Type
Optical TFT
Sensor Type
Optical
Sensor Type
Optical
Sensor Type
Optical
Sensor Type
Spec
Resolution
500 ppi
Resolution
500 ppi
Resolution
500 ppi
Resolution
500 ppi
Resolution
Spec
Grayscale
8-bit, 256 levels
Grayscale
8-bit, 256 levels
Grayscale
8-bit, 256 levels
Grayscale
8-bit, 256 levels
Grayscale
Spec
Image Size (WxL)
Four finger slap: 1600 x 1500 pixels
Two finger flat: 900 x 900 pixels
Single flat / Roll: 800 x 750 pixels
Image Size (WxL)
Four finger slap: 1600 x 1500 pixels
Single flat / Roll: 800 x 750 pixels
Image Size (WxL)
Two finger flat: 900 x 900 pixels
Single flat / Roll: 900 x 900 pixels
Image Size (WxL)
Palm print: 2500 x 2500 pixels
Four finger Slap: 1600 x 1500 pixels
Single flat / Roll: 800 x 750 pixels
Image Size (WxL)
Spec
Template Format
Xperix, ISO 19794-2, ANSI 378 by Image SDK
Template Format
Xperix, ISO 19794-2, ANSI 378 by Image SDK
Template Format
Xperix, ISO 19794-2, ANSI 378 by Image SDK
Template Format
Xperix, ISO 19794-2, ANSI 378 by Image SDK
Template Format
Spec
Supported Image Formats
RAW, BMP, WSQ, JPEG2000, ISO19794-4
Supported Image Formats
RAW, BMP, WSQ, JPEG2000, ISO19794-4
Supported Image Formats
RAW, BMP, WSQ, JPEG2000, ISO19794-4
Supported Image Formats
RAW, BMP, WSQ, JPEG2000, ISO19794-4
Supported Image Formats
Spec
Encryption
AES-256 by Image SDK
Encryption
AES-256 by Image SDK
Encryption
AES-256 by Image SDK
Encryption
AES-256 by Image SDK
Encryption
Spec
FBI / Image Certifications
Identification Flats (Appendix F), Live-Scan(Tenprint) System (Appendix F),Mobile ID FAP 60 (Appendix F)
FBI / Image Certifications
Identification Flats (Appendix F), Live-Scan(Tenprint) System (Appendix F),Mobile ID FAP 60 (Appendix F)
FBI / Image Certifications
Mobile ID FAP 45 (Appendix F), PIV Single Finger (PIV-071006)
FBI / Image Certifications
Identification Flats (Appendix F & Appendix P), Live-Scan(Tenprint) System (Appendix F),Live-Scan(Palm) System (Appendix P)
FBI / Image Certifications
Spec
System
OS Support
Windows 7 or higher 32/64bit
Linux Ubuntu, Debian, Fedora, OpenSUSE, CentOS 32/64bit
Android 5.0 or higher
OS Support
Windows 7 or higher 32/64bit
Linux Ubuntu, Debian, Fedora, OpenSUSE, CentOS 32/64bit
Android 5.0 or higher
OS Support
Windows 7 or higher 32/64bit
Linux Ubuntu, Debian, Fedora, OpenSUSE, CentOS 32/64bit
Android 5.0 or higher
OS Support
Windows 7 or higher 32/64bit
Linux Ubuntu, Debian, Fedora, OpenSUSE, CentOS 32/64bit
Android 5.0 or higher
OS Support
Spec
Weight & Dimensions
Weight
220 g
Weight
1.8 kg
Weight
540 g
Weight
5.26 kg
Weight
Spec
Platen Size (WxL)
83.3 mm x 78.2 mm
Platen Size (WxL)
89 mm x 80 mm
Platen Size (WxL)
48 mm x 48 mm
Platen Size (WxL)
131.2 mm x 130.2 mm
Platen Size (WxL)
Spec
Sensing Area (WxL)
81.28 mm x 76.2 mm
Sensing Area (WxL)
81.28 mm x 76.2 mm
Sensing Area (WxL)
46 mm x 46 mm
Sensing Area (WxL)
127 mm x 127 mm
Sensing Area (WxL)
Spec
Dimensions (WxLxH)
118 mm x 120 mm x 19.3 mm
Dimensions (WxLxH)
152 mm x 152 mm x 127 mm
Dimensions (WxLxH)
84 mm x 171 mm x 63 mm
Dimensions (WxLxH)
193 mm x 315 mm x 150 mm
Dimensions (WxLxH)
Spec
Durability
Suface Protection
Optic Glass + AR coating (Pencil 6H)
Suface Protection
Optic Glass (Scratch free)
Suface Protection
Optic Glass (Scratch free)
Suface Protection
Optic Glass (Scratch free)
Suface Protection
Spec
Ingress Protection
IP65 (Sensor Surface)
Ingress Protection
IP54 (Sealed between bezel and sensor surface)
Ingress Protection
IP53 (Sealed between bezel and sensor surface)
Ingress Protection
IP64
Ingress Protection
Spec
Operating Temperature
-10 °C - 55 °C (-50 ℉ - 131 ℉)
Operating Temperature
-10 °C - 50 °C (-50 ℉ - 122 ℉)
Operating Temperature
-10 °C - 50 °C (-50 ℉ - 122 ℉)
Operating Temperature
0 °C - 55 °C (32 ℉ - 131 ℉)
Operating Temperature
Spec
Operating Humidity
10% - 90%, non-condensing
Operating Humidity
10% - 90%, non-condensing
Operating Humidity
10% - 90%, non-condensing
Operating Humidity
10% - 90%, non-condensing
Operating Humidity
Spec
Power & Connectors
Interface
USB 2.0 High Speed, USB-C
Interface
USB 2.0 High Speed
Interface
USB 2.0 High Speed
Interface
USB 2.0 High Speed
Interface
Spec
Power Source
USB Host
Power Source
USB Host
Power Source
USB Host
Power Source
USB Host / Adapter
Power Source
Spec
USB Voltage Level
5.0V ±10%
USB Voltage Level
5.0V ±10%
USB Voltage Level
5.0V ±10%
USB Voltage Level
5.0V ±10% / 12 VDC ±10%
USB Voltage Level
Spec
General
Live Finger Detection(LFD)
Supported (by AI-based, ISO/IEC 30107-3 PAD Level 1 & 2 Compliant)
Live Finger Detection(LFD)
Supported (by AI-based, ISO/IEC 30107-3 PAD Level 1 & 2 Compliant)
Live Finger Detection(LFD)
Supported (by AI-based)
Live Finger Detection(LFD)
Not Supported
Live Finger Detection(LFD)
Spec
Sound
Buzzer
Sound
Speaker
Sound
Buzzer
Sound
Speaker
Sound
Spec
LED Indicator
Supported
LED Indicator
Supported
LED Indicator
Supported
LED Indicator
Not Supported
LED Indicator
Spec
Kensinton lock
Not Supported
Kensinton lock
Supported
Kensinton lock
Not Supported
Kensinton lock
Not Supported
Kensinton lock
Spec
Certification
Certification
FBI, CE, FCC, KC, RoHS, USB-IF, IEC 62471, WEEE, REACH, WHQL, UL, PAD Level 1 & 2 by BixeLab
Certification
FBI, CE, FCC, KC, RoHS, USB-IF, UL, WHQL, BIS, IEC62471, STQC, WEEE, REACH, PAD Level 1 & 2 by BixeLab
Certification
FBI, WHQL, CE, FCC, UL, KC
Certification
FBI, CE, FCC, KC, RoHS, WEEE, REACH, WHQL, BIS, UL
Certification
Spec
Embedded Modules
Product Image
Product Name
BM-Slim3
BM-Slim2
BM-Slim2S
RealScan S60M
Sensor & Image
Capture
Flat(Single) fingers
Flat(Single) fingers
Flat(Single) fingers
Flat(Four/Two/Single) and Rolled(Single) fingers
Sensor Type
Optical
Optical
Optical
Optical TFT
Resolution
500 ppi
500 ppi
500 ppi
500 ppi
Grayscale
8-bit, 256 levels
8-bit, 256 levels
8-bit, 256 levels
8-bit, 256 levels
Image Size (WxL)
400 x 500 pixels
300 x 400 pixels
300 x 400 pixels
Four finger slap: 1600 x 1500 pixels
Two finger flat: 900 x 900 pixels
Single flat / Roll: 800 x 750 pixels
Template Format
Xperix, ISO19794-2, ANSI 378
Xperix, ISO19794-2, ANSI 378
Xperix, ISO19794-2, ANSI 378
Xperix, ISO 19794-2, ANSI 378 by Image SDK
Supported Image Formats
RAW, BMP, ISO 19794-4, WSQ(FBI certified)
RAW, BMP, ISO 19794-4, WSQ(FBI certified)
RAW, BMP, ISO 19794-4, WSQ(FBI certified)
RAW, BMP, WSQ, JPEG2000, ISO19794-4
Encryption
Device: AES-256, RSA 1024bit, ECC 521bit
SDK: AES-256
SDK: AES-256
Device: AES-256, RSA 1024bit, ECC 521bit
SDK: AES-256
AES-256 by Image SDK
FBI / Image Certifications
Mobile ID FAP 30 (PIV-071006), PIV Single Finger (PIV-071006), FIPS
Mobile ID FAP 20 (PIV-071006), PIV Single Finger (PIV-071006)
Mobile ID FAP 20 (PIV-071006), PIV Single Finger (PIV-071006), FIPS
Identification Flats (Appendix F), Live-Scan(Tenprint) System (Appendix F), Mobile ID FAP 60 (Appendix F)
System
OS Support
Windows 7 or higher 32/64bit
Linux Ubuntu, Debian, Fedora, OpenSUSE, CentOS 32/64bit
Android 5.0 or higher (USB Host)
OS/Platform Independent, Stand-alone Operation
Windows 7 or higher 32/64bit
Linux Ubuntu, Debian, Fedora, OpenSUSE, CentOS 32/64bit
Android 5.0 or higher (USB Host)
Windows 7 or higher 32/64bit
Linux Ubuntu, Debian, Fedora, OpenSUSE, CentOS 32/64bit
Android 5.0 or higher (USB Host)
OS/Platform Independent, Stand-alone Operation
Windows 7 or higher 32/64bit
Linux Ubuntu, Debian, Fedora, OpenSUSE, CentOS 32/64bit
Android 5.0 or higher
Weight & Dimensions
Weight
48.6 g
30 g
30 g
189 g
Platen Size (WxL)
21.5 mm x 26.5mm
16.5 mm x 21 mm
16.5 mm x 21 mm
83.3 mm x 78.2 mm
Sensing Area (WxL)
20.32 mm x 25.4 mm
15.24 mm x 20.32 mm
15.24 mm x 20.32 mm
81.28 mm x 76.2 mm
Dimensions (WxLxH)
67.5 mm x 36 mm x 15 mm
59 mm x 32 mm x 13.5 mm
59 mm x 32 mm x 13.5 mm
102.4 mm x 112 mm x 15.9 mm
Durability
Suface Protection
Optic Glass (Scratch free)
Optic Glass (Scratch free)
Optic Glass (Scratch free)
Optic Glass + AR coating (Pencil 6H)
Ingress Protection
IP65 (Sealed between bezel and sensor surface)
IP65 (Sealed between bezel and sensor surface)
IP65 (Sealed between bezel and sensor surface)
IP65 (Sealed between bezel and sensor surface)
Operating Temperature
-10 °C - 50 °C (14 ℉ - 122 ℉)
-10 °C - 50 °C (14 ℉ - 122 ℉)
-10 °C - 55 °C (14 ℉ - 131 ℉)
-10 °C - 55 °C (-50 ℉ - 131 ℉)
Operating Humidity
0% - 90%, non-condensing
0% - 90%, non-condensing
0% - 90%, non-condensing
10% - 90%, non-condensing
Power & Connectors
Interface
USB 2.0 High Speed
USB 2.0 High Speed
USB 2.0 High Speed
USB 2.0 High Speed, USB-C
Power Source
USB Host
USB Host
USB Host
USB Host
USB Voltage Level
5.0V ±10%
5.0V ±10%
5.0V ±10%
5.0V ±10%
General
Live Finger Detection(LFD)
Supported (by AI-based)
Supported (by AI-based, ISO/IEC 30107-3 PAD Level 1 & 2 Compliant)
Supported (by AI-based, ISO/IEC 30107-3 PAD Level 1 & 2 Compliant)
Supported (by AI-based, ISO/IEC 30107-3 PAD Level 1 & 2 Compliant)
Plug & Play
Supported (by HID Protocol)
Not Supported
Supported (by HID Protocol)
Not Supported
Stand-alone Mode
Supported
Not Supported
Supported
Not Supported
Multi Dynamic Range(MDR)
Supported
Supported
Supported
Not Supported
Certification
Certification
FBI, CE, FCC, KC, RoHS, USB-IF, CB, IEC 62471, WEEE, REACH, BIS, WHQL
FBI, CE, FCC, KC, RoHS, CB, IEC 62471, WEEE, REACH, BIS, USB-IF, WHQL, PAD Level 1 & 2 by BixeLab
FBI, CE, FCC, KC, RoHS, CB, IEC 62471, WEEE, REACH, WHQL, PAD Level 1 & 2 by BixeLab
FBI, CE, FCC, KC, RoHS, USB-IF, IEC 62471, WEEE, REACH, WHQL, UL, PAD Level 1 & 2 by BixeLab
BM-Slim3
BM-Slim2
BM-Slim2S
RealScan S60M
Sensor & Image
Capture
Flat(Single) fingers
Capture
Flat(Single) fingers
Capture
Flat(Single) fingers
Capture
Flat(Four/Two/Single) and Rolled(Single) fingers
Sensor Type
Optical
Sensor Type
Optical
Sensor Type
Optical
Sensor Type
Optical TFT
Resolution
500 ppi
Resolution
500 ppi
Resolution
500 ppi
Resolution
500 ppi
Grayscale
8-bit, 256 levels
Grayscale
8-bit, 256 levels
Grayscale
8-bit, 256 levels
Grayscale
8-bit, 256 levels
Image Size (WxL)
400 x 500 pixels
Image Size (WxL)
300 x 400 pixels
Image Size (WxL)
300 x 400 pixels
Image Size (WxL)
Four finger slap: 1600 x 1500 pixels
Two finger flat: 900 x 900 pixels
Single flat / Roll: 800 x 750 pixels
Template Format
Xperix, ISO19794-2, ANSI 378
Template Format
Xperix, ISO19794-2, ANSI 378
Template Format
Xperix, ISO19794-2, ANSI 378
Template Format
Xperix, ISO 19794-2, ANSI 378 by Image SDK
Supported Image Formats
RAW, BMP, ISO 19794-4, WSQ(FBI certified)
Supported Image Formats
RAW, BMP, ISO 19794-4, WSQ(FBI certified)
Supported Image Formats
RAW, BMP, ISO 19794-4, WSQ(FBI certified)
Supported Image Formats
RAW, BMP, WSQ, JPEG2000, ISO19794-4
Encryption
Device: AES-256, RSA 1024bit, ECC 521bit
SDK: AES-256
Encryption
SDK: AES-256
Encryption
Device: AES-256, RSA 1024bit, ECC 521bit
SDK: AES-256
Encryption
AES-256 by Image SDK
FBI / Image Certifications
Mobile ID FAP 30 (PIV-071006), PIV Single Finger (PIV-071006), FIPS
FBI / Image Certifications
Mobile ID FAP 20 (PIV-071006), PIV Single Finger (PIV-071006)
FBI / Image Certifications
Mobile ID FAP 20 (PIV-071006), PIV Single Finger (PIV-071006), FIPS
FBI / Image Certifications
Identification Flats (Appendix F), Live-Scan(Tenprint) System (Appendix F),Mobile ID FAP 60 (Appendix F)
System
OS Support
Windows 7 or higher 32/64bit
Linux Ubuntu, Debian, Fedora, OpenSUSE, CentOS 32/64bit
Android 5.0 or higher (USB Host)
OS/Platform Independent, Stand-alone Operation
OS Support
Windows 7 or higher 32/64bit
Linux Ubuntu, Debian, Fedora, OpenSUSE, CentOS 32/64bit
Android 5.0 or higher (USB Host)
OS Support
Windows 7 or higher 32/64bit
Linux Ubuntu, Debian, Fedora, OpenSUSE, CentOS 32/64bit
Android 5.0 or higher (USB Host)
OS/Platform Independent, Stand-alone Operation
OS Support
Windows 7 or higher 32/64bit
Linux Ubuntu, Debian, Fedora, OpenSUSE, CentOS 32/64bit
Android 5.0 or higher
Weight & Dimensions
Weight
48.6 g
Weight
30 g
Weight
30 g
Weight
189 g
Platen Size (WxL)
21.5 mm x 26.5mm
Platen Size (WxL)
16.5 mm x 21 mm
Platen Size (WxL)
16.5 mm x 21 mm
Platen Size (WxL)
83.3 mm x 78.2 mm
Sensing Area (WxL)
20.32 mm x 25.4 mm
Sensing Area (WxL)
15.24 mm x 20.32 mm
Sensing Area (WxL)
81.28 mm x 76.2 mm
Sensing Area (WxL)
81.28 mm x 76.2 mm
Dimensions (WxLxH)
67.5 mm x 36 mm x 15 mm
Dimensions (WxLxH)
59 mm x 32 mm x 13.5 mm
Dimensions (WxLxH)
59 mm x 32 mm x 13.5 mm
Dimensions (WxLxH)
102.4 mm x 112 mm x 15.9 mm
Durability
Suface Protection
Optic Glass (Scratch free)
Suface Protection
Optic Glass (Scratch free)
Suface Protection
Optic Glass (Scratch free)
Suface Protection
Optic Glass + AR coating (Pencil 6H)
Ingress Protection
IP65 (Sealed between bezel and sensor surface)
Ingress Protection
IP65 (Sealed between bezel and sensor surface)
Ingress Protection
IP65 (Sealed between bezel and sensor surface)
Ingress Protection
IP65 (Sealed between bezel and sensor surface)
Operating Temperature
-10 °C - 50 °C (14 ℉ - 122 ℉)
Operating Temperature
-10 °C - 50 °C (14 ℉ - 122 ℉)
Operating Temperature
-10 °C - 55 °C (14 ℉ - 131 ℉)
Operating Temperature
-10 °C - 55 °C (-50 ℉ - 131 ℉)
Operating Humidity
0% - 90%, non-condensing
Operating Humidity
0% - 90%, non-condensing
Operating Humidity
0% - 90%, non-condensing
Operating Humidity
10% - 90%, non-condensing
Power & Connectors
Interface
USB 2.0 High Speed
Interface
USB 2.0 High Speed
Interface
USB 2.0 High Speed
Interface
USB 2.0 High Speed, USB-C
Power Source
USB Host
Power Source
USB Host
Power Source
USB Host
Power Source
USB Host
USB Voltage Level
5.0V ±10%
USB Voltage Level
5.0V ±10%
USB Voltage Level
5.0V ±10%
USB Voltage Level
5.0V ±10%
General
Live Finger Detection(LFD)
Supported (by AI-based)
Live Finger Detection(LFD)
Supported (by AI-based, ISO/IEC 30107-3 PAD Level 1 & 2 Compliant)
Live Finger Detection(LFD)
Supported (by AI-based, ISO/IEC 30107-3 PAD Level 1 & 2 Compliant)
Live Finger Detection(LFD)
Supported (by AI-based, ISO/IEC 30107-3 PAD Level 1 & 2 Compliant)
Plug & Play
Supported (by HID Protocol)
Plug & Play
Not Supported
Plug & Play
Supported (by HID Protocol)
Plug & Play
Not Supported
Stand-alone Mode
Supported
Stand-alone Mode
Not Supported
Stand-alone Mode
Supported
Stand-alone Mode
Not Supported
Multi Dynamic Range(MDR)
Supported
Multi Dynamic Range(MDR)
Supported
Multi Dynamic Range(MDR)
Supported
Multi Dynamic Range(MDR)
Not Supported
Certification
Certification
FBI, CE, FCC, KC, RoHS, USB-IF, CB, IEC 62471, WEEE, REACH, BIS, WHQL
Certification
FBI, CE, FCC, KC, RoHS, CB, IEC 62471, WEEE, REACH, BIS, USB-IF, WHQL, PAD Level 1 & 2 by BixeLab
Certification
FBI, CE, FCC, KC, RoHS, CB, IEC 62471, WEEE, REACH, WHQL, PAD Level 1 & 2 by BixeLab
Certification
FBI, CE, FCC, KC, RoHS, USB-IF, IEC 62471, WEEE, REACH, WHQL, UL
Usted pregunta, nosotros respondemos.
Podemos ayudarle a encontrar las mejores soluciones para la identidad biométrica y digital.
Hable con el
departamento de ventas
